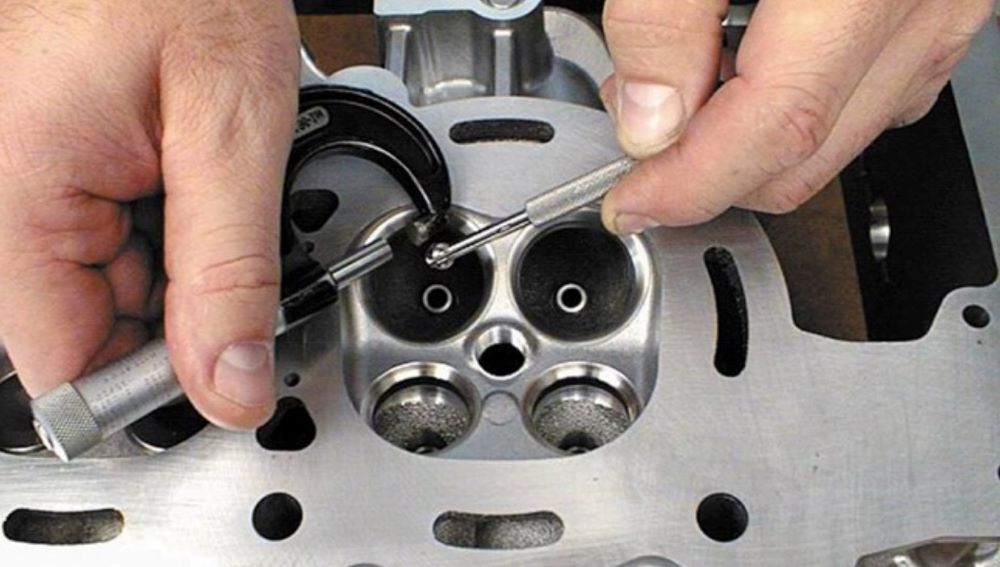

Valve Guide Measuring Tool The most accurate way to measure a valve guide bore is to use a dial bore gauge however obtaining a dial bore gauge can be expensive the most affordable option is to use either a telescopic gauge or a split ball gauge which can be found on eBay or Amazon for pretty cheap For this exercise and video I will use my dial bore gauge

In the world of valve guide sizing knurling does have a place It s a low cost repair that requires simple tooling and can be performed on a bench without the need of a seat and guide machine The spiral groove does create a place to hold oil for lubrication and heat transfer By Lambda Geeks Key Takeaways Understanding Valve Guides What is a Valve Guide in an Engine In an engine a valve guide is a cylindrical component that provides support and guidance to the valve stem It is typically made of a durable material such as bronze or cast iron

By Goodson Tools Supplies In the past we ve discussed measuring your valve guides to determine if they re within serviceable limits In this article we ll get into the various methods for repairing and replacing guides These methods include Knurling Installing thin wall bronze guide liners Replacing insert guides

Pre-crafted templates provide a time-saving solution for producing a varied series of files and files. These pre-designed formats and layouts can be used for numerous individual and professional tasks, consisting of resumes, invites, flyers, newsletters, reports, presentations, and more, simplifying the content creation process.

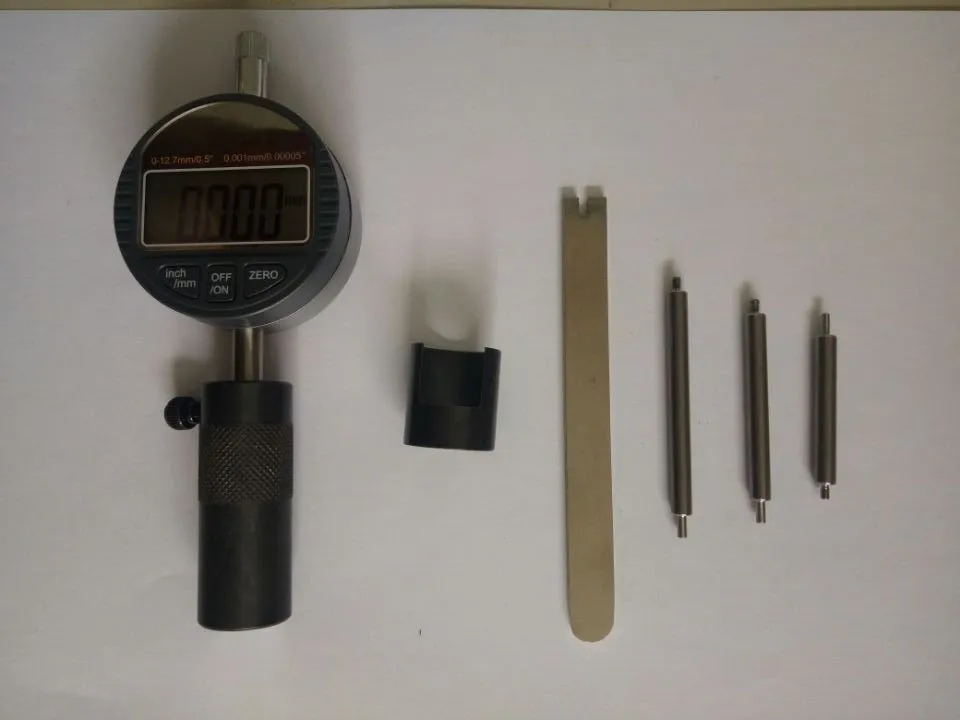

Valve Guide Measuring Tool

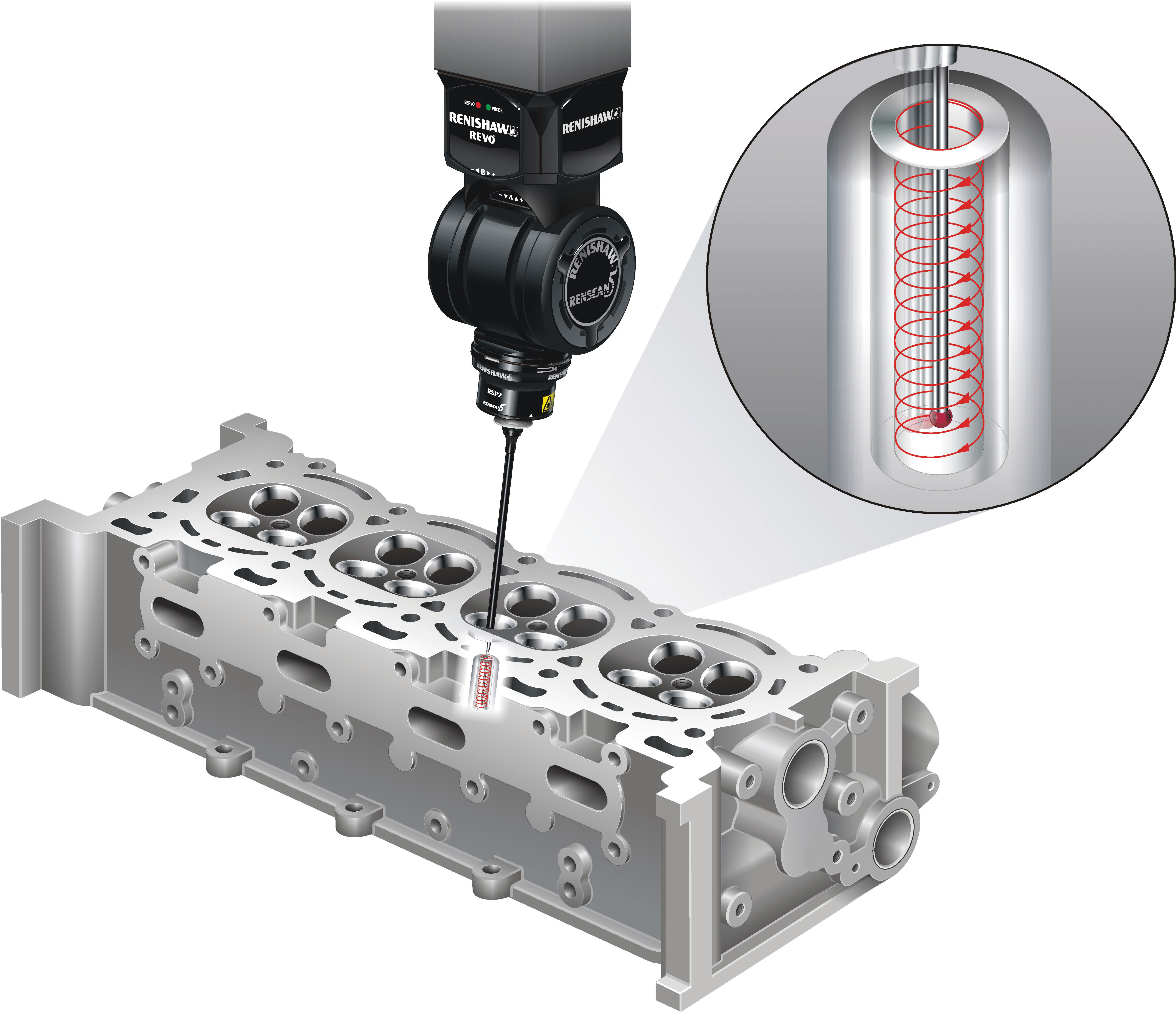

Fast Measurement And Analysis Of Valve Seats And Valve Guides

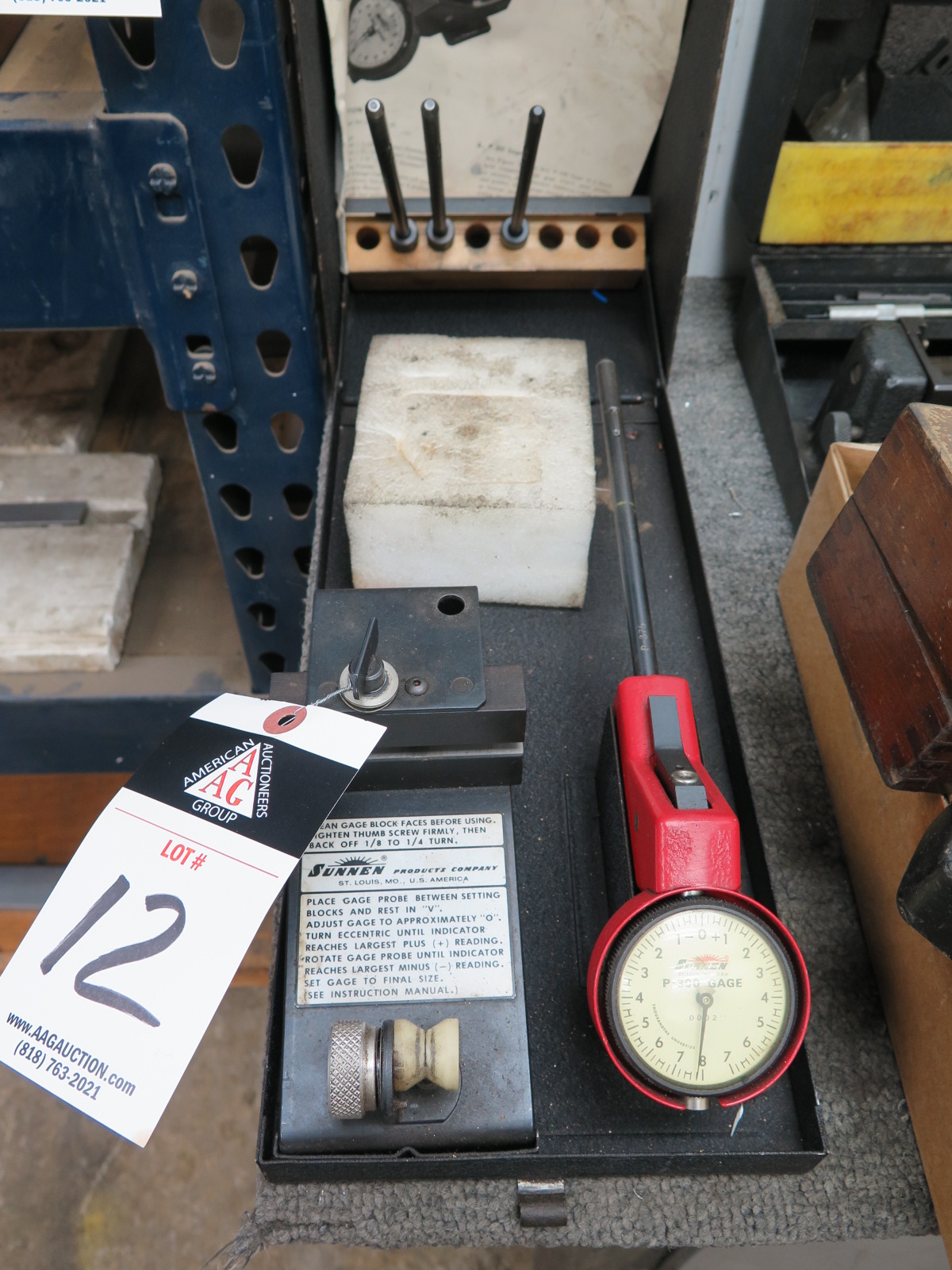

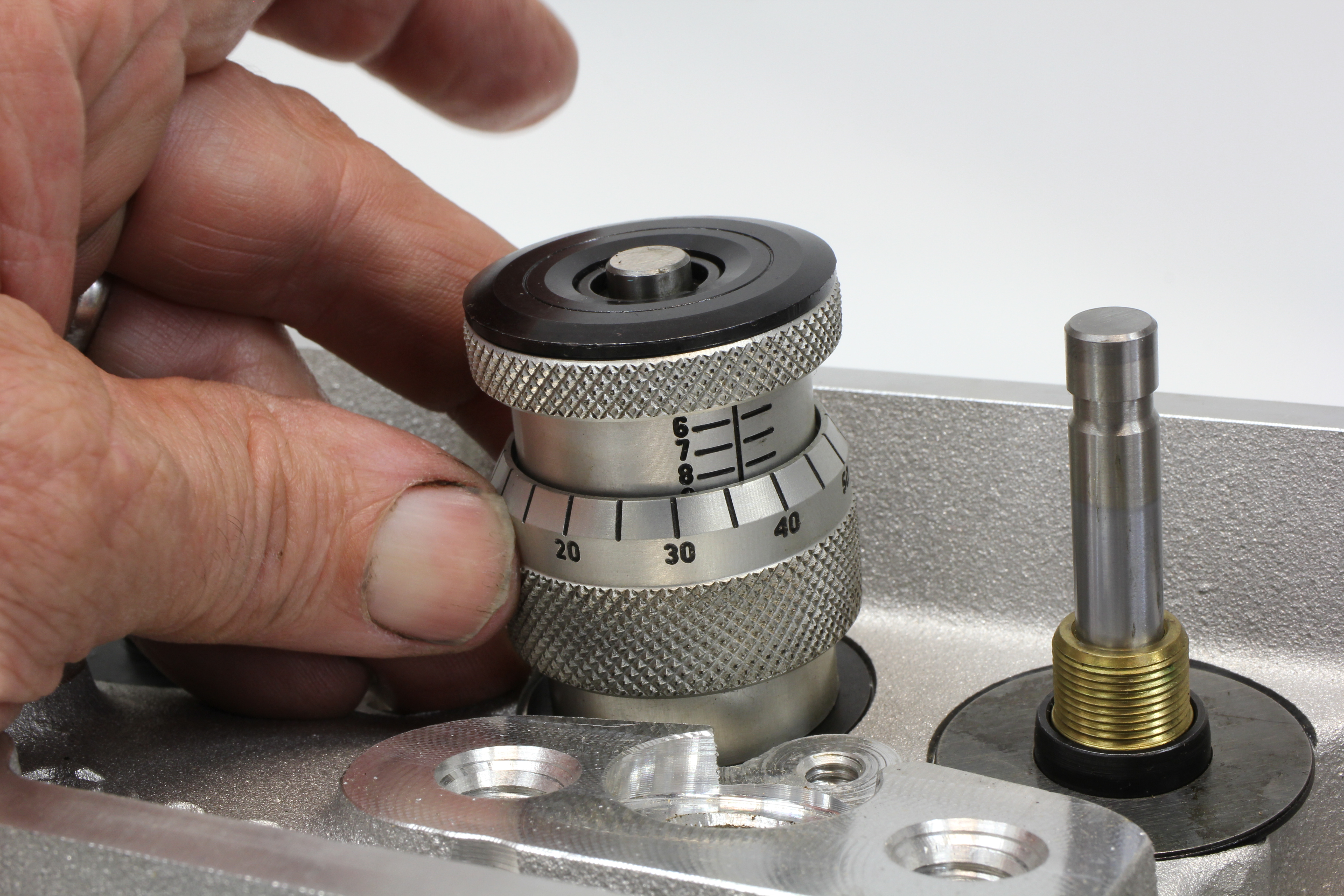

P 310 Sunnen Valve Guide Gauge Set GOODSON Goodson Tools Supplies
