Klein Conduit Bending Guide Step 1 Step 2 Step 3 Measure your job Mark you conduit using the recommended tables Use your bender s engineered marks Note Reference to the above Steps 1 2 and 3 will be made throughout this booklet 1 Don t Forget When bending on the floor pin the conduit to the floor Use heavy foot pressure

Klein Tools conduit benders with Patent Pending Angle Setter technology allow for quick accurate repeated bends The wide foot pedal provides excellent stability and features angled grooves for extra traction With easily visible bold cast in benchmark symbols degree scales and multiplier scales help save time on the job 51613 Klein s unique Angle Setter technology for quick accurate repeated bends saving time on the job Patent Pending Made in the USA Angle Setters create a hard stop for fast accurate bending Movable for four different bend angles 10 Degree 22 5 Degree 30 Degree 45 Degree adjusted for conduit spring back

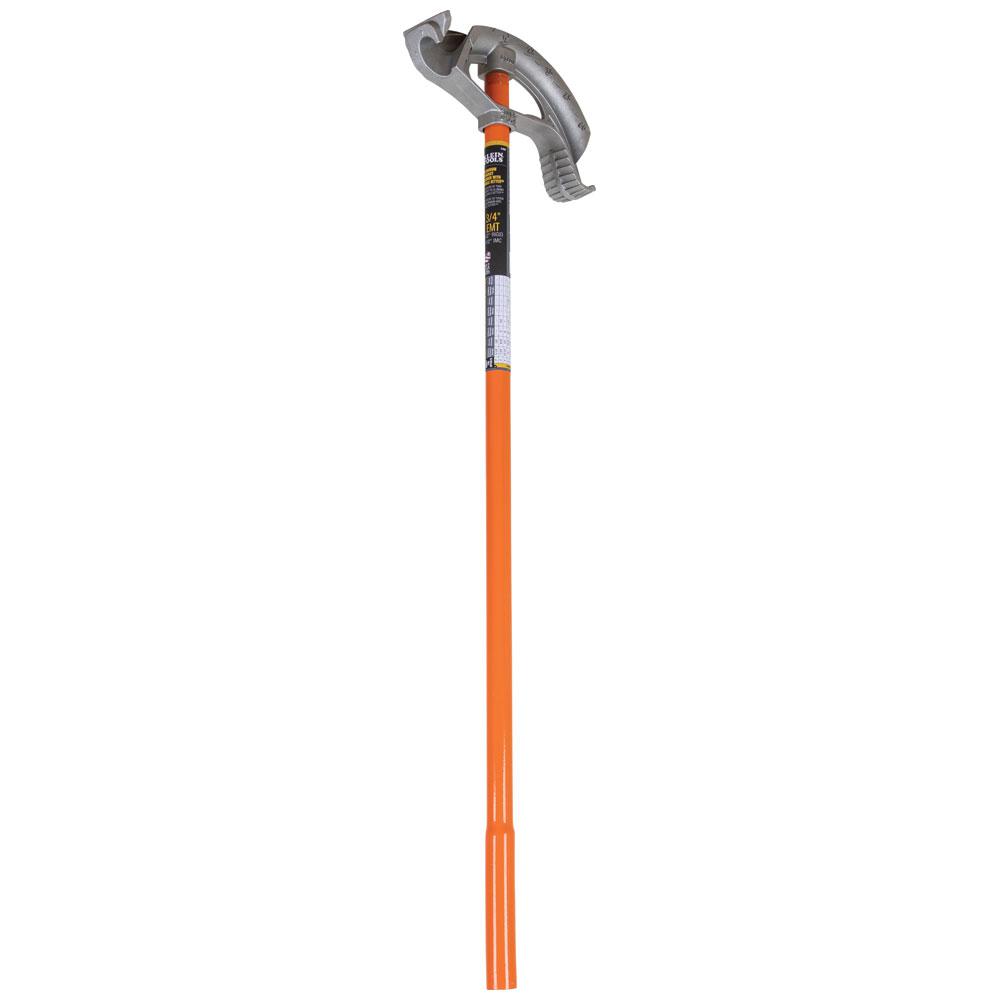

Klein Tools Conduit Bender Head is designed to handle thin wall EMT up to 1 2 Inch Made from Iron with Klein s advanced casting process for the ultimate in core strength and durability The wide foot pedal provides excellent stability and features angled grooves for extra traction Easily visible bold cast in benchmark symbols degree scales
