How To Build With Aluminum Extrusion Aluminum Extrusions can be designed to aid in assembly improve product appearance reduce or eliminate forming and welding operations and achieve many other purposes Basically aluminum extrusion allows you to design the shape that best meets your functional structural and aesthetic requirements Extruded shapes are described in three
The Process in 10 Steps by Gabrian Team Aluminum Extrusion Gabrian Blog The use of aluminum extrusion in product design and manufacturing has increased significantly in recent decades After viewing this educational video produced to clearly explain the aluminum extrusion process please visit the ILSCO Extrusions Inc website at http www ilscoextrusions ILSCO
How To Build With Aluminum Extrusion
How To Build With Aluminum Extrusion
https://static0.makeuseofimages.com/wp-content/uploads/2016/11/aluminum-extrusion-basics.jpg
Formed Profiles The formed profile is cut off at the die and the remainder of the metal is removed to be recycled After it leaves the die the still hot extrusion may be quenched mechanically treated and aged to impart desired metallurgical properties and physical performance
Templates are pre-designed files or files that can be utilized for numerous purposes. They can conserve time and effort by providing a ready-made format and design for developing various kinds of material. Templates can be utilized for individual or professional tasks, such as resumes, invitations, leaflets, newsletters, reports, discussions, and more.
How To Build With Aluminum Extrusion
Overview Of Aluminum Extrusions
Custom Aluminum Profile Prototype Aluminum Extrusions RapidDone
Yet Another 80 20 MFT SYS Cart Aluminum Extrusion Design Workbench
Aluminum Extrusion Dies This Is What Designers Should Know

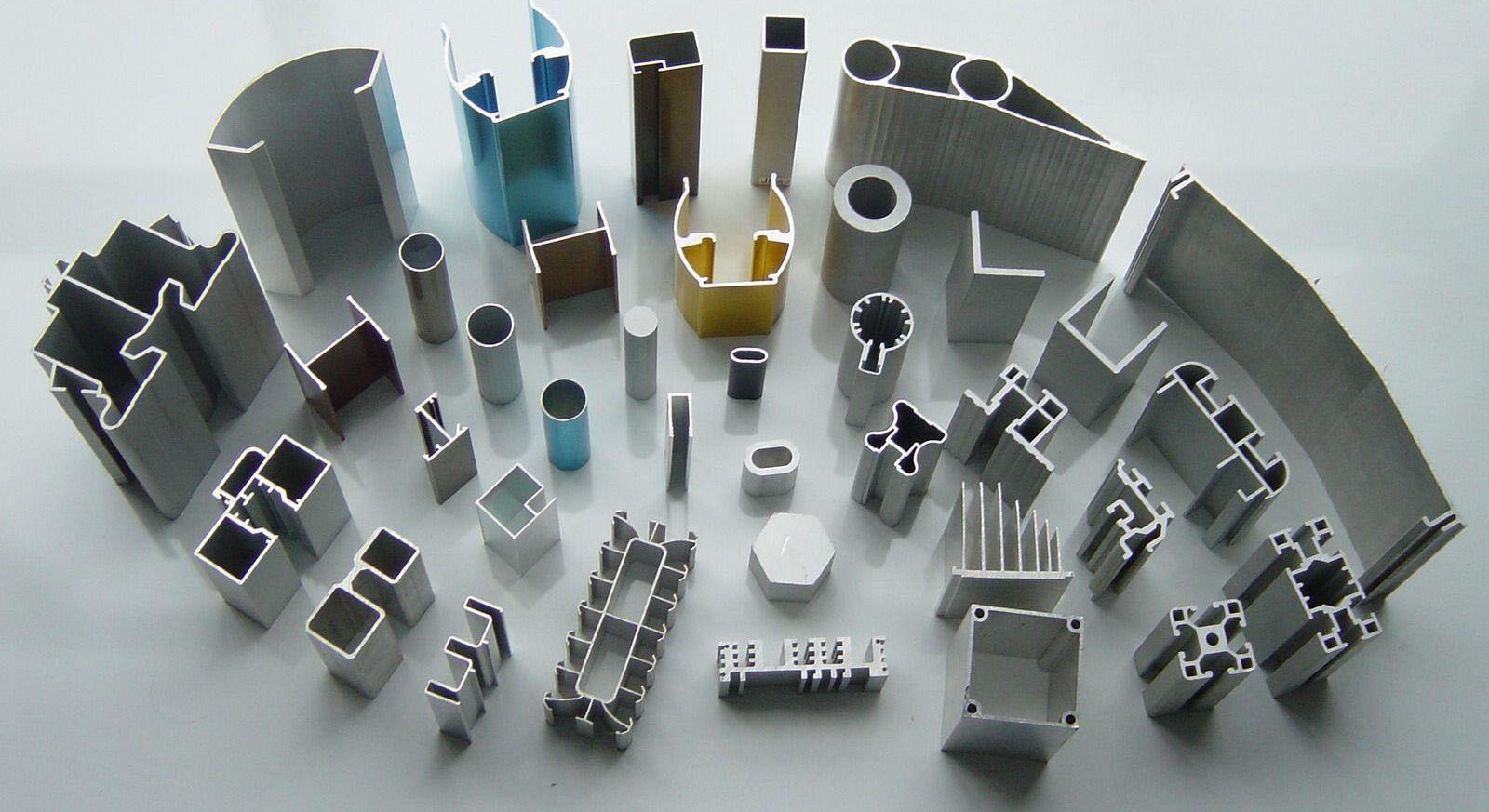

Extruded Aluminum Shapes Aluminum Extrusion Suppliers And Manufacturers
The Ins And Outs Of Aluminium Extrusion Presto Engineering
https://www.makeuseof.com/tag/beginners-guide-building-things-v-slot-aluminum-extrusion/
Home DIY Beginner s Guide to Building Things With V Slot Aluminum Extrusion By Joe Coburn Published Nov 9 2016 Building things with metal isn t as hard as you d think V slot and T slot aluminum extrusions make it simple to build structural frames Readers like you help support MUO
https://hackaday.com/2021/05/25/getting-started-with-aluminum-extrusions/
In general all you need is a way to cut the extrusion square or buy it in the lengths you want and a way to drill holes in the relatively soft aluminum In some cases you may want to tap some
https://blog.airlinehyd.com/how-to-build-anything-with-aluminum-extrusion-in-3-steps
Step 1 Design Step 2 Material Prep Step 3 Assembly Watch Video Resources and Information What is Aluminum Extrusion Think about a tube of toothpaste When you apply pressure toothpaste gets forced out of the opening
https://www.alineautomation.com/news/view/beginners-guide-to-building-with-t-slot-aluminum-framing
The above example is a simplified version of how countless industries make T slot aluminum framing Aluminum is quite malleable which makes it very easy to manipulate into a variety of shapes The aluminum used to make T slot framing goes through a heating process to increase its malleability Then the heated aluminum will push through custom
https://hackaday.com/2020/08/13/under-pressure-how-aluminum-extrusions-are-made/
The basic process for extruding aluminum is outwardly as simple to understand as the extrusion process used by a 3D printer heat material and force it through a die with the desired shape and
To make things easier We have divided the aluminum extrusion process into different steps Step 1 Preparation of the extrusion die In the first step a round formed die is machined from H13 steel To produce a tube or hollow a mandrel establishes the inside contour Mandrels can either be separate tools or an integral part of specialized dies There are three types of extrusion dies porthole and bridge designs for hollow shapes and machined blanks for solid shapes Dies are usually machined from A13 steel at 47 to 51 Rockwell B
4 Structural joint design guide T slot aluminum extrusions generally enable quick design and manufacturing of structural frames but their design can have a huge effect on overall structural integrity Below are our three top design tips for creating reliable rigid and industrial grade t slot aluminum extrusion structures 1
