Caliper Guide Pin Bushing Top Or Bottom Options On Chrysler T C it goes to the bottom to stabilize the possible shaking noise of the caliper refer to Chrysler data and an example https www youtube watch v dupMpCgh Almost 90 percent of the time it goes to the bottom almost all cars Idea is to stabilize the caliper from making noises while driving
How to Identify Top and Bottom Guide Pins To answer the question of which brake caliper guide pin goes on top we need to understand how they differ in shape length and placement Generally speaking there are two types of brake caliper guide pins top and bottom To differentiate these two types you must look at their physical features Here are the facts 1MZ FE 3 0L Engine V6 2003 model year Front wheel drive with disc brakes and no real signs of uneven front pad wear on old front pads The brake assemblies for the front wheels are on the front side of the rotor I just completed putting new rotors and ceramic pads on all four wheels
Caliper Guide Pin Bushing Top Or Bottom
Caliper Guide Pin Bushing Top Or Bottom
https://honda-tech.com/forums/attachments/road-racing-autocross-time-attack-19/438712d1501528094-question-about-brake-sliding-caliper-pins-itrfrontbrakepage.jpg
The caliper guide pins are two round metal pins on each brake caliper where the brake piston assembly sits They re called guide pins because they re responsible for guiding the proper angle for how the brake pad meets the rotor
Pre-crafted templates use a time-saving option for creating a varied range of documents and files. These pre-designed formats and designs can be utilized for numerous individual and professional jobs, including resumes, invites, leaflets, newsletters, reports, discussions, and more, streamlining the material production process.
Caliper Guide Pin Bushing Top Or Bottom
Which Brake Caliper Guide Pin Goes On Top Brake Experts
Caliper Slide Pin Boot What Is It Motor Works Inc Motor Works
Disc Brake Caliper Guide Pin Sleeve Disc Brake Caliper Slide Pin
BMW Bronze ECS Caliper Guide Pin Bushing Kit Installation ECS Tuning
Rubber Washers bushings On Front Caliper Slide Pins Ford Truck
Carlson Brake Caliper Pin Boot Kit Rear Canadian Tire
https://www.youtube.com/watch?v=iedv77K7zEY
If anyone has a definitive answer on what the function of the rubber bushing is please post it in the comments below And if you ve been forum hopping like
https://brakeexperts.com/which-brake-caliper-guide-pin-goes-on-top/

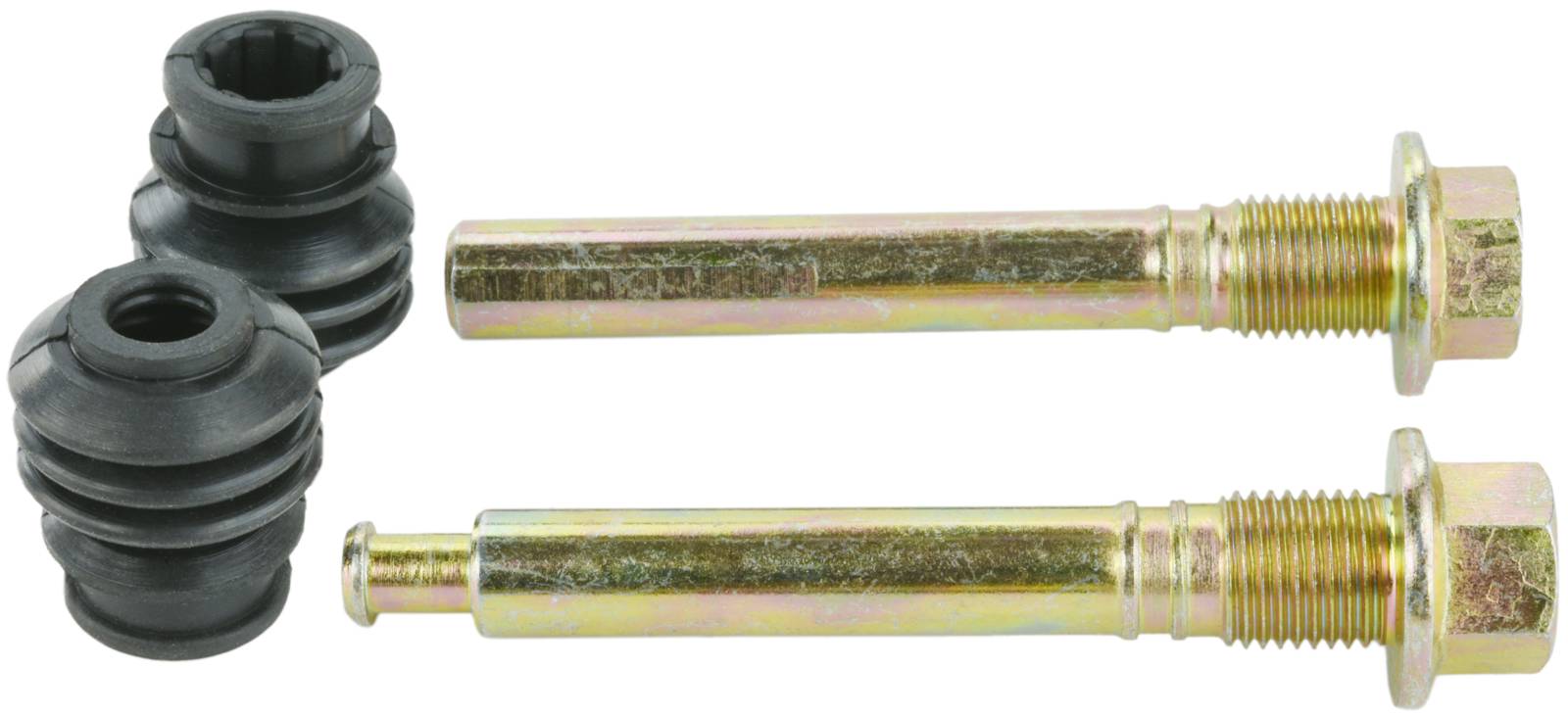

While there may be exceptions as a general rule the guide pin without the rubber bushing it looks like a short sleeve at the end goes on top of the brake caliper assembly In some instances this bushing less guide pin also has a beveled flattened surface instead of a smooth cylindrical shape
https://bobistheoilguy.com/forums/threads/caliper-slide-pin-difference.297523/
1 Have a 2004 Buick Rendezvous FWD with ABS that one of the slide pins is frozen Not the original caliper as those were replaced several years ago I want to replace the pins but don t recall seeing two different pins for the caliper or also one piece that looks like a rubber sleeve Just an example of what I am finding for this car
https://www.ford-trucks.com/forums/1332131-caliper-slide-pin-with-bushing-top-or-bottom.html
Caliper Slide Pin with Bushing top or bottom 2004 6 0 4WD SRW One of the Front Caliper Slide Pins has a rubber bushing on it Does that slide pin with the bushing go in the top or bottom hole I had a note that it goes in the top but I am not not sure where I got this information from
https://blogproautomotive.com/which-brake-caliper-guide-pin-goes-on-top/
September 30 2021 by Sean Mendez Which brake caliper guide pin goes on top If you forgot which one to use while reinstalling the brake calipers then our guide will help you out The brake caliper is an essential component of the disc brake that helps in stopping your car
Understanding Brake Caliper Guide Pins Beneath the intricate system of a vehicle s braking system are the brake caliper guide pins These pins play a vital role in ensuring the smooth operation of the brake calipers allowing them to slide and retract properly By doing so they enable the brake pads to make consistent and even contact with the rotor ensuring effective braking performance 1 Like ok4450 October 26 2017 2 18am 5 Just theorizing but I feel the rubber sleeve is probably for use as a vibration dampener to aid in noise reduction Checking the brakes I noticed my top guide pin was all smooth while the lower one had a groove on the end with a rubber jacket around it Something similar to linked pin
A Theory The Brake Caliper Slide Pin Rubber Is an Anti Rattle Device If you have ever successfully removed this bolt which not many have in the Northeast you know that it has a rather cute little rubbery sleeve on the end of it as if to mock each one of your herculean removal efforts
